产品详情
     |

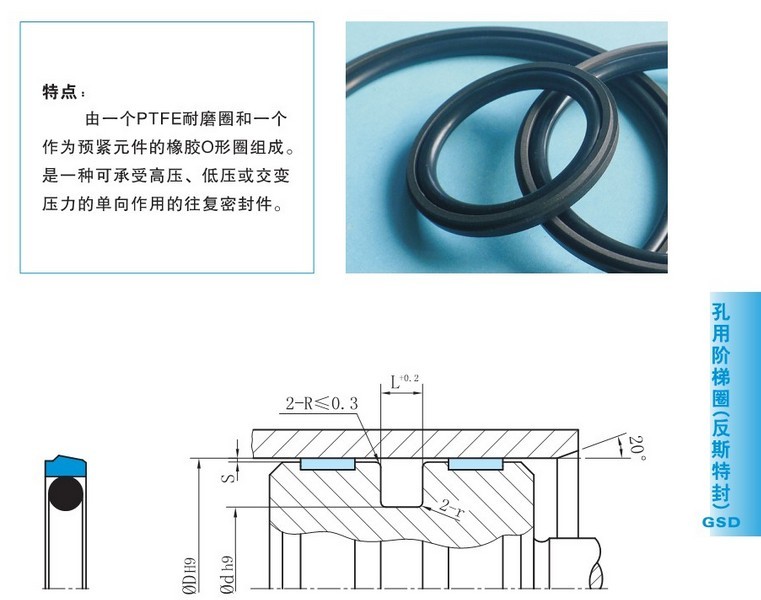

国产孔用四氟斯特封.活塞孔用阶梯四氟密封圈
|
国产孔用斯特封 (活塞用斯特封 O型圈在内)
标准来源:GB/T15242.1-94
材质:聚四氟乙烯PTFE+铜粉, 丁晴橡胶NBR
工作压力:≤40Mpa, 工作温度:-50℃-200℃,往复运动速度:≤4m/s
适用于 液压系统的往复运动,在高压和低压
高频工况下的双向活塞密封
规格尺寸D*d*L 单价 mS
GSD-10*5.1*2.2 ￥3.0
GSD-12*7.1*2.2 ￥3.0
GSD-14*9.1*2.2 ￥3.0
GSD-15*10.1*2.2 ￥3.0
GSD-16*11.1*2.2 ￥3.0
GSD-18*10.7*3.2 ￥3.0
GSD-20*15.1*2.2 ￥3.0
GSD-20*12.7*3.2 ￥3.0
GSD-22*14.7*3.2 ￥3.0
GSD-25*17.7*3.2 ￥3.0
GSD-25*14.3*4.2 ￥3.0
GSD-27*16.3*4.2 ￥3.2
GSD-28*17.3*4.2 ￥3.2
GSD-30*22.7*3.2 ￥3.3
GSD-30*19.3*4.2 ￥3.3
GSD-32*24.7*3.2 ￥3.5
GSD-32*21.3*4.2 ￥3.5
GSD-35*24.3*4.2 ￥3.5
GSD-36*28.7*3.2 ￥3.6
Q-694135321
GSD-36*25.3*4.2 ￥3.5
GSD-38*30.7*3.2 ￥4.5
GSD-38*27.3*4.2 ￥5.0
GSD-40*32.7*3.2 ￥5.0
GSD-40*29.3*4.2 ￥5.0
GSD-42*31.3*4.2 ￥5.5
GSD-45*37.7*3.2 ￥6.0
GSD-45*34.3*4.2 ￥6.5
GSD-48*37.3*4.2 ￥6.5
GSD-50*39.3*4.2 ￥6.5
GSD-52*41.3*4.2 ￥7.0
GSD-55*39.9*6.3 ￥7.5
GSD-60*49.3*4.2 ￥8.0
GSD-60*44.9*6.3 ￥8.0
GSD-63*52.3*4.2 ￥8.5
GSD-63*47.9*6.3 ￥8.5
GSD-65*49.9*6.3 ￥9.0
GSD-70*59.3*4.2 ￥9.5
GSD-70*54.9*6.3 ￥10.0
Q-2426651639
GSD-75*59.9*6.3 ￥10.5
GSD-80*64.9*6.3 ￥10.9
GSD-80*59.5*8.1 ￥17.5
GSD-85*69.9*6.3 ￥11.9
GSD-85*64.5*8.1 ￥13.0
GSD-90*74.9*6.3 ￥13.0
GSD-90*69.5*8.1 ￥17.5
GSD-95*79.9*6.3 ￥13.5
GSD-95*74.5*8.1 ￥18.5
GSD-100*84.9*6.3 ￥14.5
GSD-100*79.5*8.1 ￥19.5
GSD-105*89.9*6.3 ￥16.0
GSD-105*84.5*8.1 ￥20.0
GSD-106*90.9*6.3 ￥18.0
GSD-110*94.9*6.3 ￥15.6
GSD-110*89.5*8.1 ￥17.5
GSD-115*99.9*6.3 ￥17.0
GSD-125*109.9*6.3 ￥17.9
GSD-125*104.5*8.1 ￥21.5
GSD-130*114.9*6.3 ￥18.8
GSD-130*109.5*8.1 ￥24.0
GSD-135*119.9*6.3 ￥20.0
GSD-135*114.5*8.1 ￥25.0
Q-694135321
GSD-140*124.9*6.3 ￥24.0
GSD-140*119.5*8.1 ￥30.0
GSD-145*129.8*6.3 ￥25.0
GSD-145*124.5*8.1 ￥32.0
GSD-150*134.9*6.3 ￥25.5
GSD-150*129.5*8.1 ￥32.0
GSD-155*139.9*6.3 ￥26.0
GSD-155*134.5*8.1 ￥35.0
GSD-160*144.9*6.3 ￥26.5
GSD-160*139.5*8.1 ￥30.0
GSD-165*149.9*6.3 ￥27.0
GSD-165*144.5*8.1 ￥35.0
GSD-170*154.9*6.3 ￥27.5
GSD-170*149.5*8.1 ￥35.0
GSD-175*159.9*6.3 ￥28.0
GSD-175*154.5*8.1 ￥35.0
GSD-180*164.5*6.3 ￥29.0
GSD-180*159.5*8.1 ￥35.0
GSD-190*174.9*6.3 ￥31.0
GSD-190*169.5*8.1 ￥36.0
GSD-200*184.9*6.3 ￥32.0
GSD-190*179.5*8.1 ￥36.0
GSD-210*189.5*8.1 ￥35.0
GSD-220*204.9*6.3 ￥33.0
GSD-220*199.5*8.1 ￥36.0
Tel-0512-3683-2562
GSD-230*209.5*8.1 ￥38.5
GSD-240*219.5*8.1 ￥40.0
GSD-250*229.5*8.1 ￥42.0
GSD-250*226*8.1 ￥45.0
GSD-256*232*8.1 ￥43.0
GSD-260*236*8.1 ￥64.0
GSD-270*246*8.1 ￥77.0
GSD-280*256*8.1 ￥92.0
GSD-290*266*8.1 ￥100.0
GSD-300*276*8.1 ￥105.0
GSD-306*285.5*8.1 ￥109.0
GSD-310*286*8.1 ￥112.0
GSD-320*299.5*8.1 ￥112.0
GSD-320*296*8.1 ￥120.0
GSD-330*306*8.1 ￥120.0
GSD-340*316*8.1 ￥128.0
GSD-350*326*8.1 ￥135.0
GSD-360*336*8.1 ￥142.0
GSD-370*346*8.1 ￥150.0
GSD-380*356*8.1 ￥160.0
GSD-390*366*8.1 ￥170.0
GSD-400*376*8.1 ￥180.0
GSD-410*386*8.1 ￥190.0
微信-136-2189-0604
GSD-420*396*8.1 ￥200.0
GSD-430*406*8.1 ￥215.0
GSD-440*416*8.1 ￥230.0
GSD-450*426*8.1 ￥240.0
GSD-460*436*8.1 ￥250.0
GSD-470*446*8.1 ￥260.0
GSD-480*456*8.1 ￥280.0
GSD-490*466*8.1 ￥300.0
GSD-500*476*8.1 ￥320.0
GSD-540*516*8.1
GSD-600*576*8.1
GSD-650*626*8.1
GSD-700*672.7*9.5
GSD-800*772.7*9.5
GSD-860*832.7*9.5
GSD-900*872.7*9.5
GSD-920*892.7*9.5
微信-136-2189-0604
GSD-1000*972.7*9.5
GSD-1000*962*13.8
GSD-1200*1172.7*9.5
GSD-1200*1162*13.8
GSD-1500*1462*13.8
GSD-2000*1962*13.8
