产品详情
     |
国产轴用格莱圈,轴用反向格莱圈
|

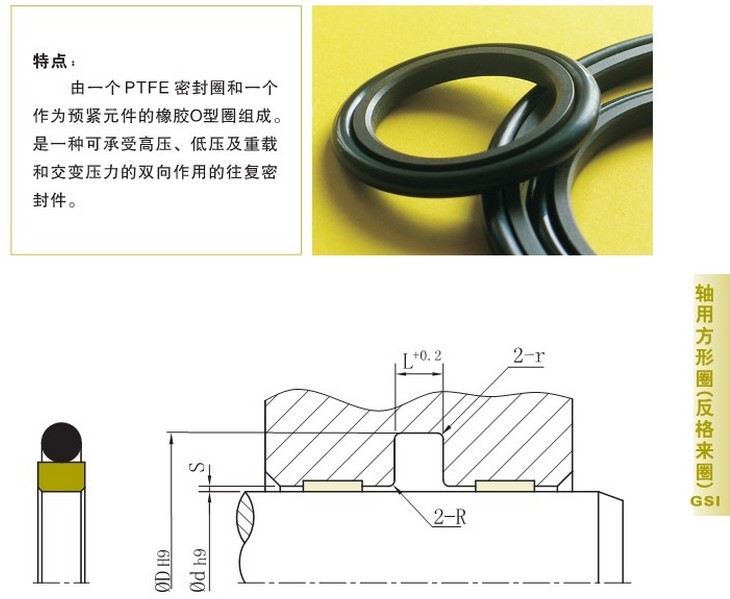

国产轴用格莱圈
材质:聚四氟乙烯PTFE+丁晴橡胶NBR或者氟橡胶FKM
工作压力:≤40Mpa,工作温度:-50℃~200℃(取决于O型圈材质,NBR材质使用极限温度100℃,耐高温的FKM材质极限温度200℃)
往复运动速度:≤4m/s
型号(内径*外径*高)牌价
产品规格尺寸(d*D*L)mm 单价 MS
STd-4*8.9*2.2 ￥3.0
STd-5*9.9*2.2 ￥3.0
STd-6*10.9*2.2 ￥3.0
STd-7*11.9*2.2 ￥3.0
STd-8*15.3*3.2 ￥3.0
STd-10*17.3*3.2 ￥3.0
STd-12*19.9*3.3 ￥3.0
STd-14*21.3*3.2 ￥3.0
STd-14*18.9*2.2 ￥3.0
STd-15*22.3*3.2 ￥3.0
STd-16*23.3*3.2 ￥3.0
STd-18*25.3*3.2 ￥3.0
Q-2426651639
STd-19*29.7*4.2 ￥3.0
STd-20*32.3*3.2 ￥3.0
STd-20*30.7*4.2 ￥3.0
STd-22*29.3*3.2 ￥3.0
STd-22*32.7*4.2 ￥3.0
STd-25.4*36.1*4.2 ￥3.0
STd-25*35.7*4.2 ￥3.0
STd-28*38.7*4.2 ￥3.0
STd-30*40.7*4.2 ￥3.3
STd-32*42.7*4.2 ￥3.5
STd-36*46.7*4.2 ￥3.5
STd-38*48.7*4.2 ￥3.8
STd-38*53.1*6.3 ￥3.8
STd-40*50.7*4.2 ￥5.0
STd-40*55.1*6.3 ￥5.0
STd-42*57.1*6.3 ￥5.2
STd-45*55.7*4.2 ￥6.0
STd-45*60.1*6.3 ￥6.5
Q-694135321
STd-50*60.7*4.2 ￥6.5
STd-50*65.1*6.3 ￥6.5
STd-55*65.7*4.2 ￥7.0
STd-55*70.1*6.3 ￥7.0
STd-56*66.7*4.2 ￥7.5
STd-56*71.1*6.3 ￥7.5
STd-60*70.7*4.2 ￥7.5
STd-60*75.1*6.3 ￥7.5
STd-63*73.7*4.2 ￥8.0
STd-63*78.1*6.3 ￥8.0
STd-65*80.1*6.3 ￥8.5
STd-70*85.1*6.3 ￥9.5
STd-75*90.1*6.3 ￥10.0
STd-80*95.1*6.3 ￥10.0
STd-85*100.1*6.3 ￥11.0
STd-90*100.1*6.3 ￥12.5
STd-95*110.1*6.3 ￥13.0
STd-100*115.1*6.3 ￥12.0
STd-100*110.1*4.2 ￥12.0
STd-101.6*116.7*6.3 ￥13.8
STd-105*120.1*6.3 ￥14.7
STd-110*125.1*6.3 ￥15.5
STd-110*130.5*8.1 ￥21.0
STd-112*127.1*6.3 ￥16.0
STd-115*130.1*6.3 ￥16.5
STd-120*135.1*6.3 ￥16.9
STd-125*140.1*6.3 ￥17.7
STd-130*145.1*6.3 ￥18.0
STd-140*150.7*4.2 ￥19.0
STd-140*155.1*6.3 ￥21.0
STd-145*160.1*6.3 ￥21.0
STd-150*165.1*6.3 ￥21.5
STd-160*175.1*6.3 ￥23.7
Tel-0512-3683-2562
STd-160*180.5*8.1 ￥28.5
STd-165*180.1*6.3 ￥24.0
STd-170*185.1*6.3 ￥29.0
STd-170*180.7*4.2 ￥24.0
STd-175*190.1*6.3 ￥27.5
STd-180*195.1*6.3 ￥28.1
STd-180*200.5*8.1 ￥31.5
STd-190*205.1*6.3 ￥30.0
STd-200*215.1*6.3 ￥34.5
STd-200*220.5*8.1 ￥36.0
STd-210*230.5*8.1 ￥37.0
STd-220*240.5*8.1 ￥37.0
STd-230*250.5*8.1 ￥45.5
STd-240*260.5*8.1 ￥49.0
STd-250*270.5*8.1 ￥54.0
STd-260*284*8.1 ￥72.0
STd-270*294*8.1 ￥83.0
STd-275*299*8.1 ￥81.0
STd-280*304*8.1 ￥85.0
STd-290*314*8.1 ￥97.0
STd-300*324*8.1 ￥117.0
STd-310*334*8.1 ￥127.0
STd-320*344*8.1 ￥130.0
STd-340*364*8.1 ￥138.0
STd-350*374*8.1 ￥147.0
微信-136-2189-0604
STd-360*384*8.1 ￥135.0
STd-370*394*8.1 ￥148.0
STd-390*414*8.1 ￥160.0
STd-400*424*8.1 ￥171.0
STd-410*434*8.1 ￥195.0
STd-420*444*8.1 ￥220.0
STd-430*454*8.1 ￥230.0
STd-440*464*8.1 ￥230.0
STd-450*474*8.1 ￥240.0
STd-460*484*8.1 ￥250.0
STd-470*494*8.1 ￥270.0
STd-480*504*8.1 ￥280.0
STd-490*514*8.1 ￥290.0
STd-500*524*8.1 ￥330.0
STd-510*534*8.1 ￥340.0
STd-520*544*8.1 ￥355.0
STd-530*554*8.1 ￥380.0
STd-540*564*8.1 ￥390.0
STd-550*574*8.1 ￥400.0
STd-560*584*8.1
STd-570*594*8.1
STd-580*604*8.1 ￥440.0
STd-590*614*8.1 ￥450.0
STd-600*624*8.1 ￥480.0
STd-610*634*8.1
STd-620*644*8.1
Q-694135321
STd-630*654*8.1
STd-640*664*8.1
STd-650*677.3*9.5
STd-660*687.3*9.5
STd-670*697.3*9.5
STd-680*707.3*9.5
STd-690*717.3*9.5
STd-700*727.3*9.5
STd-710*737.3*9.5
STd-740*767.3*9.5
STd-770*797.3*9.5
STd-800*827.3*9.5
STd-850*877.3*9.5
STd-870*897.3*9.5
STd-900*927.3*9.5
STd-910*937.3*9.5
STd-950*977.3*9.5
STd-960*987.3*9.5
STd-1050*1077.3*9.5
STd-1050*1088*13.8
STd-1160*1187.3*9.5
STd-1200*1227.3*9.5
Q-2426651639
STd-1200*1238*13.8
STd-1300*1327.3*9.5
STd-1500*1527*9.5
STd-1500*1638*13.8
STd-2000*2038*13.8
